A quick introduction

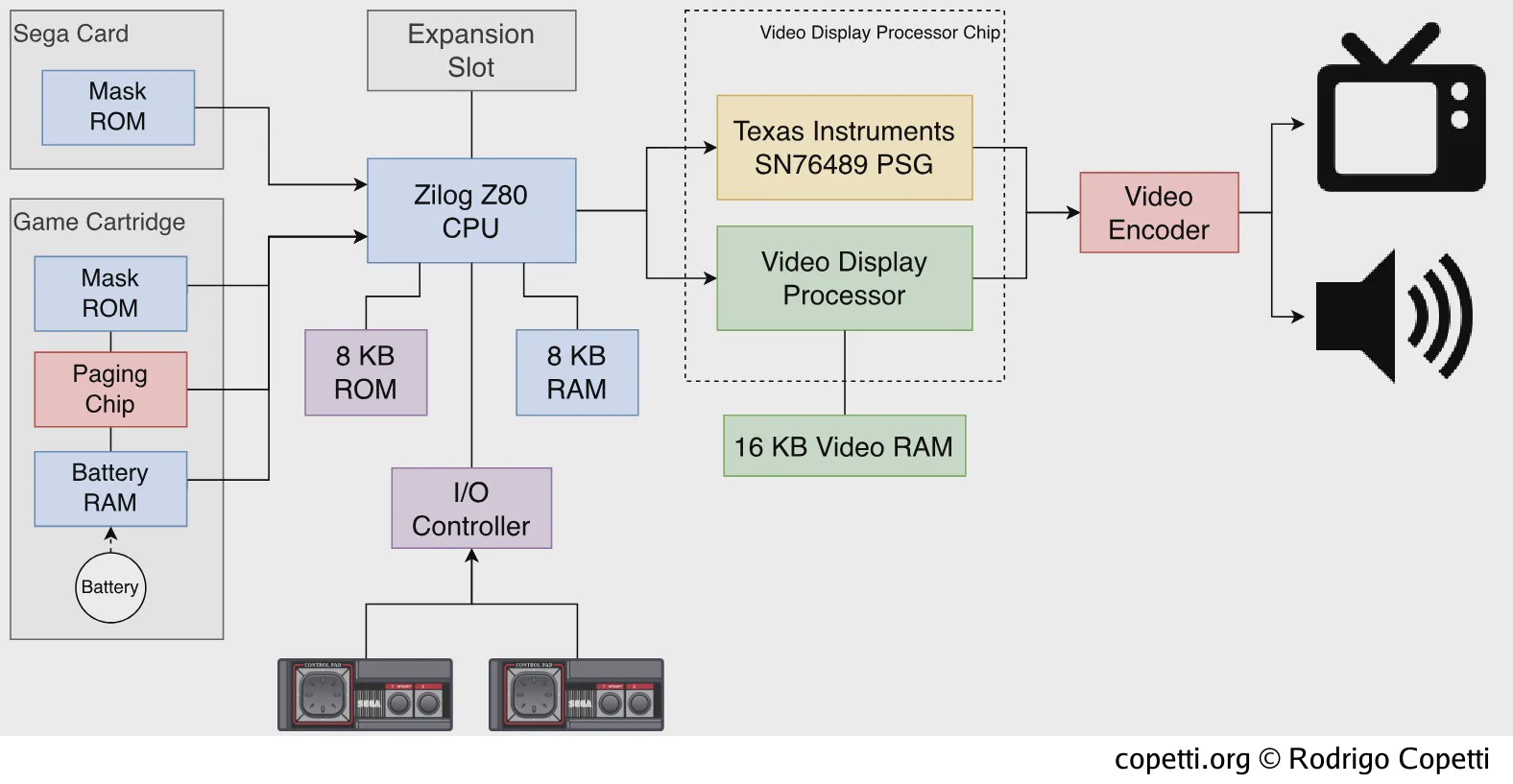

The Master System comes from a long line of succession. What started as a collection of off-the-shelf components, has now gained a new identity thanks to Sega’s engineering.
Models and variants
I was a bit confused at first while reading about the different models that Sega ended up shipping, so here is a summary of the main models discussed to avoid further confusion:
- Sega Mark III: The first console featuring this architecture, only released in Japan.
- Sega Master System (Europe and America): A rebranded Mark III with a new case, a BIOS ROM chip and a different cartridge slot.
- Sega Master System (Japan): An European/American Master system with the Mark III’s cartridge slot, a new FM chip and a jack port for ‘3D glasses’. However, it lacks the
RESET
button.
From now on I’ll use the term ‘Master System’ or ‘SMS’ to refer to all of these, except when talking about exclusive features from a particular model.
CPU
Sega decided on a fully-fledged Zilog Z80 CPU running at ~3.58 MHz. A popular choice by computer manufacturers like the Spectrum, Amstrad or Tandy.
The Z80 CPU has an interesting background, as it was authored by no other than the creators of the Intel 8080 (Federico Faggin and Masatoshi Shima), who then became disenchanted with Intel’s direction and decided to start their own silicon company - Zilog - in 1974. Their debuting product can be thought of as the unofficial successor of the Intel 8080, now featuring:
- The Z80 ISA: An instruction set compatible with the Intel 8080 but expanded with lots more instructions. It handles 8-bit words.
- An 8-bit data bus, ideal for moving 8-bit data around. Larger values will consume extra CPU cycles.
- Fourteen 8-bit general-purpose registers [2]: This is quite a lot, considering the Intel 8080 features half and the MOS 6502 only three (
X
,Y
andA
). However, the Z80’s register file exhibits some caveats (or advantages, depending on how you see it):- Only seven registers are accessible at a time, the other seven are called ‘Alternative Registers’ and must be swapped with the first set to be able to access them. This correlates with the principle of bank switching. Also, the Z80 provides specialised instructions like
EX
andEXX
to transfer the contents between each set. - Within each set, six 8-bit registers may also be paired together to provide up to three 16-bit registers, allowing the manipulation of larger values.
- Only seven registers are accessible at a time, the other seven are called ‘Alternative Registers’ and must be swapped with the first set to be able to access them. This correlates with the principle of bank switching. Also, the Z80 provides specialised instructions like
- A 16-bit address bus, the consequences are explained in the next section.
- A 4-bit ALU: This may be a bit shocking, but it just means that operations done to 8-bit values take twice the cycles to compute.

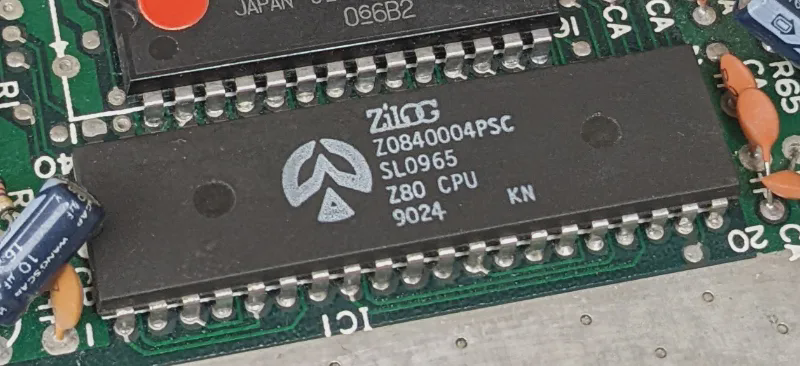

The motherboard picture at the start of the article shows an NEC D780C-1 CPU, that’s just SEGA second-sourcing the chip to different manufacturers, other revisions even included the chip manufactured by Zilog. But for this article, it doesn’t matter who fabricated the CPU, as the internal features remain the same.
Relative comparison
Notice how the 6502 CPU (featured in the NES) runs at a mere ~2 MHz. That’s around half the speed of the Master System’s chip. Combined with the Z80’s larger register file, one would think the Master System should outperform the NES without doubt.
Conversely, if we dig deeper, you’ll see that the 6502 houses a larger (8-bit) ALU. Thus, arithmetical operations that may only take two cycles in the 6502, will consume four in the case of the Z80. At the end of the day, this tells you that relative qualities like CPU clock speed or register file size, when analysed in isolation, may be deceiving. Both Z80 and 6502 excel and struggle at different tasks, it all comes down to the skills of the programmer.
Memory available
As said before, the Z80 has a 16-bit address bus, so the CPU can find up to 64 KB worth of memory. Now, in the Master System’s memory map, you’ll find 8 KB of RAM for general-purpose use [3], this is mirrored in another 8 KB block. Finally, up to 48 KB of game ROM are mapped as well.
Accessing the rest of the components
As you can read from the previous paragraph, only main RAM and some cartridge ROM are found in the address space, so how can the program access other components? Well, unlike Nintendo’s Famicom/NES, not all the hardware of the Master System is mapped using memory locations. Instead, some peripherals are found in the I/O space.
This is because the Z80 family contains an interesting feature called I/O ports which enables the CPU to communicate with other hardware without running out of memory addresses. For this, there’s a separate address space for ‘I/O devices’ called ports and both share the same data and address bus. The difference, however, is that ports are read and written using IN
and OUT
instructions, respectively - as opposed to the traditional load/store instruction (LD
).
When an IN
or OUT
instruction is executed, the Z80 sets up the address lines pointing to the peripheral (which could be, for instance, a keyboard), flags its IORQ
pin indicating that an I/O request has been initiated and finally flags the RD
pin or the WR
pin whether it’s an IN
or OUT
instruction, respectively. The addressed peripheral must manually check for the address bus and the I/O pins and perform the required operation. In the case of an IN
instruction, the CPU will store the received value on a pre-defined register.
The way SEGA interconnected the CPU with the rest of the components enables not only to access values but also to show/hide certain components from appearing in the memory map.
Curiously enough, the Game Boy had a Z80 ‘variant’ that completely omitted the I/O ports. Thus, it had to fit everything in the memory map.
Backwards compatibility
The architecture of this console is very similar to its predecessor, the Sega SG-1000, so the Master System managed to gain backwards compatibility with the SG-1000. Although, this only applies to the Japanese variant since the others contain a different cartridge slot.
Graphics
The drawings on the screen are produced by a proprietary chip called Video Display Processor or ‘VDP’. Internally, it has the same design as the Texas instrument TMS9918 (used in the SG-1000) [4] though enhanced with more features which we will discuss in the following sections.
Organising the content
Next to the VDP is connected 16 KB of VRAM which only the VDP can access using a 16-bit data bus (Sega modified the original design to access two memory chips with 8-bit buses at the same time [5]). If you look at the motherboard picture again, you’ll notice that both RAM and VRAM chips are roughly the same, except that VRAM uses the chip model ending in ‘20’ which has lower latency [6].
In the case of the Master System, VRAM houses everything the VDP will require for rendering (except Colour RAM). The CPU fills VRAM by writing to specific VDP registers, which will in turn forward the values to VRAM. Since the VDP is accessed using I/O ports, the CPU must use IN
and OUT
instructions.
Constructing the frame
The VDP renders frames with a resolution of up to 256x192 pixels, further revisions added support for 256x224 px and 256x240 px, however, to maintain compatibility with all models, developers held on to the standard resolution. This chip has the same modus operandi as Nintendo’s PPU, in other words, graphics are rendered on the spot.
On the other side, the VDP has four different modes of operation which will alter the characteristics of the frame (colour depth and resolution):
- Mode 0 to III: Inherited from the TMS9918 found on the SG-1000. Included for backwards compatibility, although any SMS game can use them.
- Mode IV: Native mode of the Master System, which enables access to all the state-of-the-art features of the VDP. For the analysis, we’ll focus on this one!
Now let’s see how a frame is drawn step by step, for this, I’ll borrow Sonic The Hedgehog’s assets. Also, to make explanations easier, I’m going to focus on the standard memory layout that Sega suggests for organising the graphics content (just remember that the VDP is very flexible with this, so games are allowed to optimise it).
Tiles
Mode IV is based on the tile system. To recall previous explanations about tile engines, tiles are just 8x8 pixel bitmaps which the renderer fetches to draw the game’s graphics. In the case of the VDP, the frame is composed of two planes, the background layer and the sprite layer.
Inside VRAM, there’s an area dedicated for tiles called Character generator (Sega calls ‘Characters’ to tiles) and it’s set to be 14 KB long. Each tile occupies 32 bytes, so we can store up to 448 tiles.
There are 64 pixels defined on every tile, the VDP rules that each pixel must weigh 4 bits, which means that up to 16 colours can be chosen. Those bits reference a single entry on Colour RAM or ‘CRAM’. That area is found inside the VDP and stores the colour palettes. Colour palette systems help reduce the size of tiles in memory and allow programmers to alternate their colours without storing multiple copies.
Colour RAM stores two palettes of 16 colours each. Each entry is 6-bit wide and each 2-bit set defines one colour from the RGB model. This means that there are 64 colours available to choose from.
Background Layer
A background layer is a large plane where static tiles are drawn. To place something here, there’s another area on VRAM called Screen map that takes 1.75 KB.
This enables developers to build a layer of 896 tiles (32x28 tiles) [7], but if we do the math we’ll see that this layer is larger than the display resolution of this console. The reality is, only 768 tiles (32x24 tiles) are visible, so the visible area is manually selected at the programmer’s will. Hence, by slowly alternating the X and Y coordinates of the selected area, a scrolling effect is accomplished.
Each entry of the map is 2 bytes wide (as wide as the VDP data-bus) and contains the address of the tile in the Character generator and the following attributes:
- Horizontal and Vertical flip.
- The priority bit (whether to draw some or all the tile in front of sprites).
- The colour palette used.
Curiously enough, there are 3 unused bits in the entry that the game can use for other purposes (i.e. extra flags to assist the game engine).
Sprites
Sprites are just tiles that move freely. The VDP can raster up to 64 sprites using a single tile (8x8 px) or two tiles stacked vertically (8x16 px).
The Sprite Attribute Table is a 256-byte area in VRAM that contains an array of all the sprites defined, its entries are similar to the background layer, except each sprite contain two additional values representing the X/Y coordinates.
The VDP is limited to up to eight sprites per horizontal scan-line [8]. Also, if multiple sprites overlap, the first one in the list will be the one displayed.
Result
The VDP automatically blends the two layers to form the final frame. The rendering process is done scan-line by scan-line, so the VDP doesn’t really know how the frame is going to look, that’s only seen by the user when the picture is constructed on the TV.
If you look at the example image, you may notice the frame has a vertical column at the left side. This is because the screen map is only tall enough to provide vertical scrolling without producing artefacts, but not wide enough for horizontal scrolling. So, the VDP can mask the left-most side with an 8 px column to protect the image from showing intermediate tiles.
To update the graphics for the next frame without breaking the image currently being displayed, the VDP sends two types of interrupts to the CPU. One which notifies that the CRT TV has finished beaming a chosen number of scan-lines (called horizontal interrupt) and another when the CRT finished drawing the last scan-line (called vertical interrupt) indicating the frame is finished. During those events, the CRT’s beam is re-allocating to draw the next scan-line (blanking interval), so any alteration of the VDP’s state won’t tear the image down. Horizontal blanking has a shorter time-frame than vertical blanking, yet it still allows to change, let’s say, the colour palette. This still can achieve some effects.
Secrets and limitation
At first glance, the VDP may seem like another chip with minimal functionality that we now take for granted. Although, it happened to divert a lot of attention from Nintendo’s offering at that time. So, why would that be?
Collision detection
Well, first of all, the VDP was able to tell if two sprites were colliding. This was done by checking its status
register [9]. It couldn’t detect which ones in particular, but that limitation was tackled by reading other registers as well, like the scan-line counter
one. You can imagine it as a method of ‘triangulation’.
This feature is not new actually, as the TMS9918 also included it, thus the SG-1000 had collision detection too.
The need for modularity
When I previously analysed the design of Nintendo’s PPU, I made emphasis on its internal memory architecture. While limited, some constraints were somewhat beneficial as it enabled the system to be expanded with the use of extra hardware included in the game cartridge, keeping the costs down in the process.
The VDP doesn’t take advantage of this modular approach. Instead, Sega implemented a different solution that in turn saves cartridge costs. The smaller background layer and horizontal interrupts are examples of this.
3D glasses
American variant connected through the card port.
It turns out Sega also shipped ‘3D glasses’ as an official accessory! The glasses worked in-sync with the CRT. During gameplay, the game switches the position of objects between frames. Each lens has an LCD screen that shuts black to block your eyesight. So, the correct combination of graphics flickering and shutters alternating eventually creates a stereoscopic image in your head. Thus, a ‘3D’ effect.
The shutters are controlled from a couple of memory addresses, but none of them will tell the console if there are glasses plugged in, so games that support this accessory include a settings option that allows the user to manually activate this feature.
The LCD controllers are interfaced with a jack cable, which is plugged into the console. The European and American versions didn’t include the jack input, so they rely on the card port to connect an adaptor (we’ll see more about the card slot later on).
Video Output
The video-out connector of this system is incredibly handy. It exposes composite and RGB signals, which can be imagined as the two ‘extremes’ of video quality.
On the downside, it doesn’t carry ‘composite sync’, so making use of the RGB will require capturing the sync signal from composite, and its quality isn’t optimal.
Audio
The audio capabilities of this console are pretty much aligned with the rest of the 80s equipment. Inside the VDP chip, we find a slightly-customised version of the Texas Instruments SN76489 [11], which is a Programmable Sound Generator or ‘PSG’. This is the same type used for the NES/Famicom, albeit having different functions.
Functionality
A PSG can only synthesise a limited set of waveforms, each channel allocates a single waveform. I’ve previously introduced some PSGs on the NES article and the Game Boy if you want to read more about this type of sound synthesis.
With the SMS, the PSG is programmed by altering its set of external registers using the aforementioned I/O ports.
Now let’s take a look at each type of waveform the SN76489 can generate:
Pulse
Pulse channel.
Pulse/Tone waves produce that iconic sound from the 8-bit generation. The sound wave is generated by latching up the voltage, keeping it steady and then dropping it altogether. Repeat this at a constant rate and a tone will be heard.
The period of the wave will define the frequency of the sound (musical note). Its duty cycle affects the timbre.
All of this is handled by the PSG, which can produce three pulse waves at the same time. The SN76489 in particular exposes a 10-bit counter on each channel that will be used internally to latch at a high rate, resulting in a pulse wave at a programmable frequency.
Noise
Noise channel.
Noise is a type of signal which is associated with interference. When outputted to a speaker, it sounds like static.
The SN76489 contains a Linear Feedback Shift Register or ‘LFSR’ which is fed with some input and cycled through to generate a pseudo-random signal. It does contain some parameters to switch between white noise and periodic noise, the latter steals the third pulse channel and feeds it through the LFSR to produce a bass-like sound (pulse at four octaves lower).
The oscillator used can also be altered to change the pitch, there are four options to choose from.
Games normally use the noise channel for percussion and/or sound effects.
Mixed
All audio channels.
So far we’ve discussed what each channel does separately, but the TV will just receive a mono signal with all the channels mixed by the PSG.
Finally, the chip also contains programmable attenuators used to lower the decibels of each channel, effectively acting as a volume control.
Secrets and limitations
Just like the VDP, the PSG is a no-brainer, but it does hide some interesting functionality:
FM Expansion
PSG | FM | |
Tap to enable interaction |
The Japanese version of the Master System embedded an extra chip for audio made by Yamaha called YM2413. It’s drastically different from the previous PSG as it uses the frequency modulation technique to generate sound. I’ve explained briefly how this works in the Mega Drive article, in case you are interested.
This chip in particular has nine channels of audio. Each channel can either select one of the 16 preset instruments, or define a custom one by programming the carrier and modulator. Unfortunately, only one custom instrument is allowed at a time. On the other side, the new instrument provides some interesting functions, such as ADSR envelope controls and feedback.
The YM2413 has also a second mode of operation called Rhythm mode which instead provides six channels supplemented with five extra channels for rhythm instruments only.
The final sound output is generated by the YM2413, which mixes its own channels along with the PSG ones.
The Mark III version didn’t include this chip, but FM was available as an expansion unit called FM Sound Unit. The rest (European and American Master Systems) had to stick with the PSG, although some third-party installations eventually appeared.
Emulation accuracy
NES’ shows some decay while SGM’s is squared-shaped.
While I was reading through SMS Power (a website which collects a lot of technical info about the system), I came across one interesting section called ‘The imperfect SN76489’ [12] that discusses some discrepancies that I was encountering while writing the article.
If you take a look again at the example video for the pulse wave, you’ll see that it’s visualised with an almost-perfect square wave. The pulse generator works by latching the voltage to generate the tone. However, in electrical circuits, components don’t just go from zero to one (or vice-versa) instantly, there’s always a transient period (mainly attributed to the existence of filters in the electrical circuit).
Now, I use emulators to capture separate channels and avoid interference during recordings, although emulators don’t always account for the transient factor, so their result may be closer to the ‘ideal scenario’ than the realistic one found in 80s electronics. Take a look at the example image. Both samples are taken from emulators, but it seems that the NES one potentially exhibits a behaviour closer to the analogue world.
I don’t have the necessary tools right now to confirm whether the SMS should show similar behaviour. But if it does, it doesn’t imply that what you heard is incorrect, just at a slightly different volume (barely noticeable).
Sample play
1-bit PCM sample.
While the SN76489 doesn’t have a PCM channel to reproduce samples, there are some tricks that can be used to simulate this feature.
These rely on the pulse channels, it’s discovered that if the tone level is fixed at 1
, the volume level (which alters the amplitude) will condition the shape of the waveform.
smspower.org describes different designs that would allow playing 1-bit, 4-bit and 8-bit PCM samples. Although storage requirements skyrocket as bigger the sample resolution and rate, so the best uses of these exploits are found in homebrew games.
It’s worth pointing out that streaming samples consume a good amount of CPU cycles, and there’s only one processor in this system, so the game may need to be halted for a short period.
I/O
Like the other systems from its generation, the CPU is mostly in charge of handling I/O. In this case, the Z80 processor is unique for having that special I/O addressing, but still, there will be CPU cycles spent in moving bits around components.
On the other side, the SMS uses a dedicated I/O controller chip to not only interface the joypads, but also enable and disable parts of the system, which will alter the address map. Furthermore, this controller is essential for supporting the FM expansion, since the FM module exposes ports that conflict with the rest of the system (that is, without the intervention of the I/O chip).
Available interfaces
Apart from the two controller ports, the system contains one proprietary cartridge slot, one ‘Sega Card’ slot and one expansion slot reserved for ‘future accessories’. The latter was never used, except for the FM expansion in the Mark III. Even so, the SMS and Mark III had a different expansion port design [13].
Top interruptors
Another speciality about this console is that includes two buttons on the top of its case, PAUSE
and RESET
, you can guess what they do!
When the PAUSE
button is pressed, a non-maskable interrupt is sent to the CPU [15]. The interrupt vector is stored in the game itself, meaning that it’s up to the game to honour the press.
By contrast and for some strange reason, the RESET
button is handled like a keypress on the controller.
Operating System
There’s a small 8 KB BIOS ROM fitted on the motherboard that gets executed whenever the console is turned on. The program itself doesn’t fit into the category of an ‘Operating System’, it’s more of a Boot Manager.
Medium selector
The main goal of the BIOS is to bootstrap a valid game (from either game slot) with the following priority: The Sega Card, the cartridge and the expansion module.
The boot process works as follows:
- The console is switched on.
- The BIOS copies part of its code to main RAM.
- This is a crucial step since the program will start manipulating I/O ports, which will at some point disable access to the ROM!
- Show splash screen (Only in USA/Europe).
- Check each slot for a valid game.
- This is done by talking to the I/O controller chip to activate the required slot. Then, the boot program copies the game header (16 bytes) from each slot to check if the game content is valid (thus, properly inserted). The header must have
TMR SEGA
encoded.
- This is done by talking to the I/O controller chip to activate the required slot. Then, the boot program copies the game header (16 bytes) from each slot to check if the game content is valid (thus, properly inserted). The header must have
- Perform region check.
- Redirect execution to the game.
Surprise screen
If any of the checks fail, the console will loop indefinitely while showing a screen that prompts the user to insert a valid game:
As you can see, there’re some creative differences between regions. The first time I heard the Japanese one I thought it came from Electric Light Orchestra (the band), but it’s actually from Space Harrier (the game). By the way, the perspective effect on the floor is accomplished by altering the colour palettes.
More regional differences
Because the Japanese variant was backwards compatible with the SG-1000, the header check is replaced with an ‘integrity check’ that instead reads data from the first 256 bytes multiple times to detect if it’s garbage.
Furthermore, the Mark III doesn’t have a BIOS, so the slots are activated with hardware switches and the cartridge is the medium with the most priority.
Updatability and later BIOS chips
The BIOS ROM, by its nature, is not updatable. Although, as new console revisions entered the market, it was discovered that Sega also updated the BIOS program.
Later BIOSes even embedded a whole game! As a consequence, the ROM chip got bigger and was accompanied by a dedicated mapper.
Games
To make a long story short, games are written in plain Z80 assembly, that’s it. If you’ve been reading articles on later consoles, there are no compilers or assisting software here (apart from the assembler).
Medium

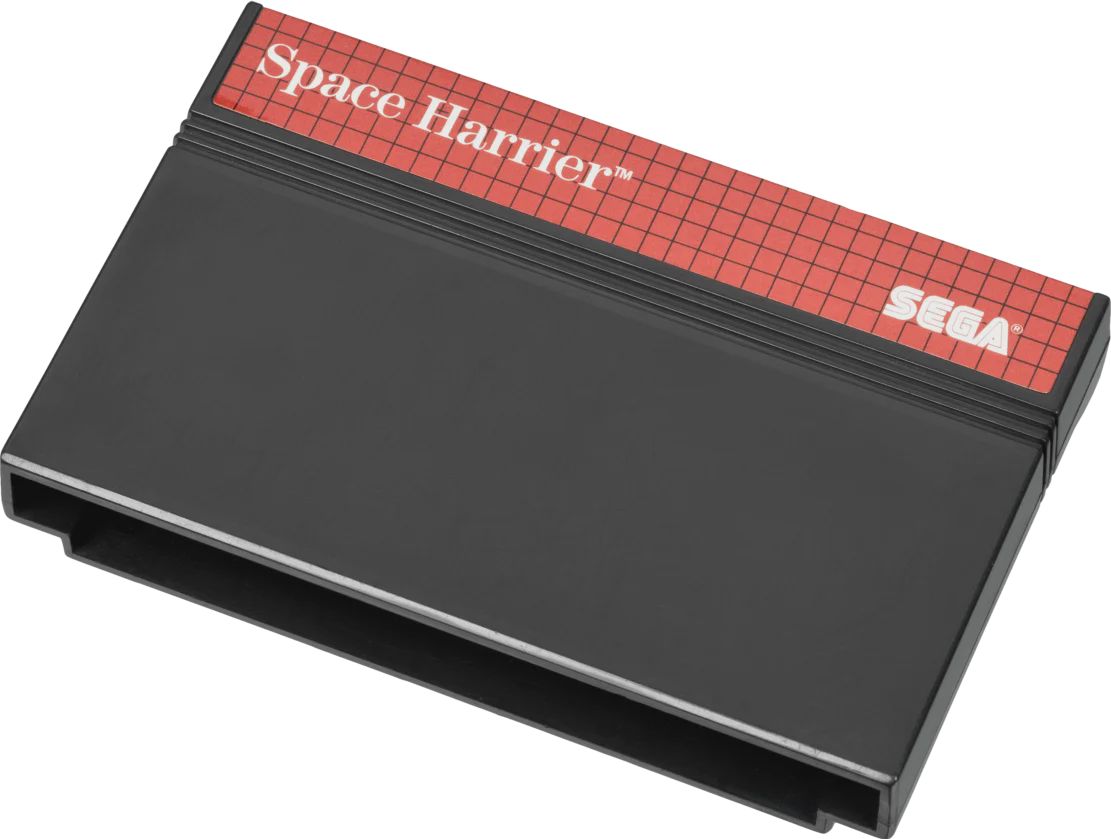

The Master Systems provides two different mediums for distributing games:

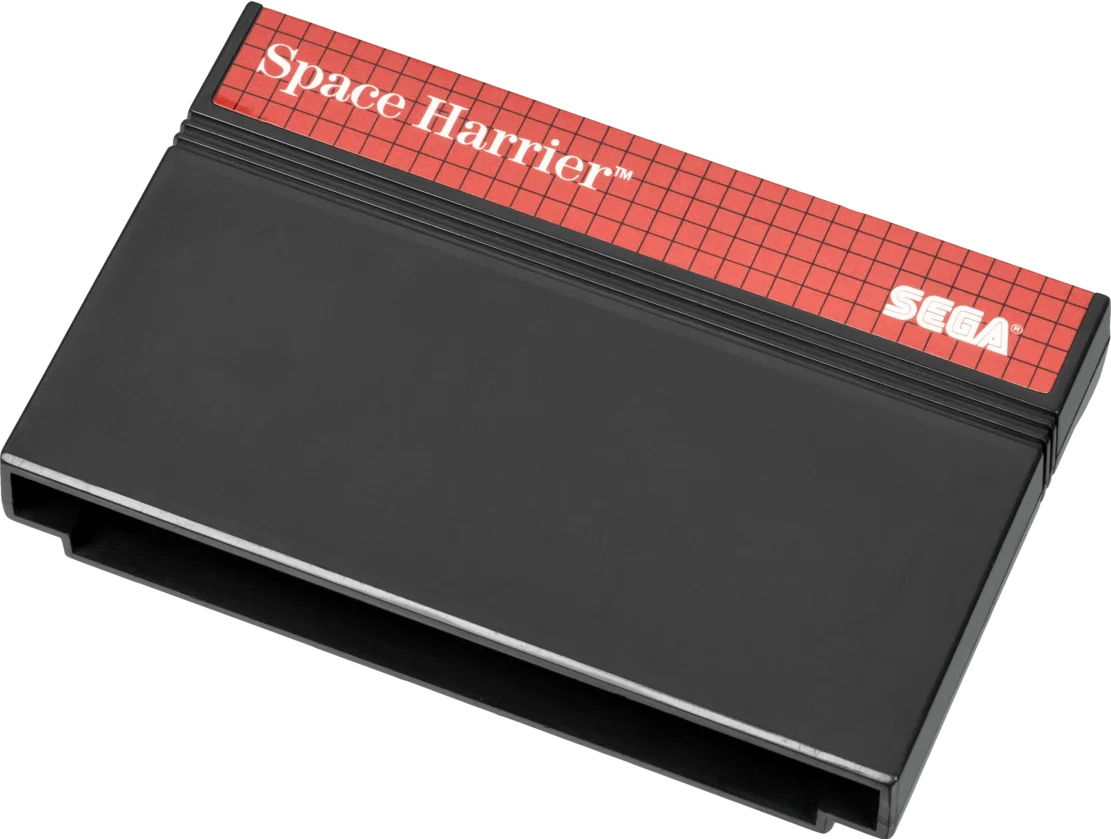

- The Cartridge: Most common one, up to 48 KB of memory can be addressed. However, by including a mapper, the system can access a wider space and/or handle other chips like RAM which can be used to store saves.
- Sega provided official mappers for developers called ‘Paging Chips’, the most powerful one maps up to 512 KB of memory!

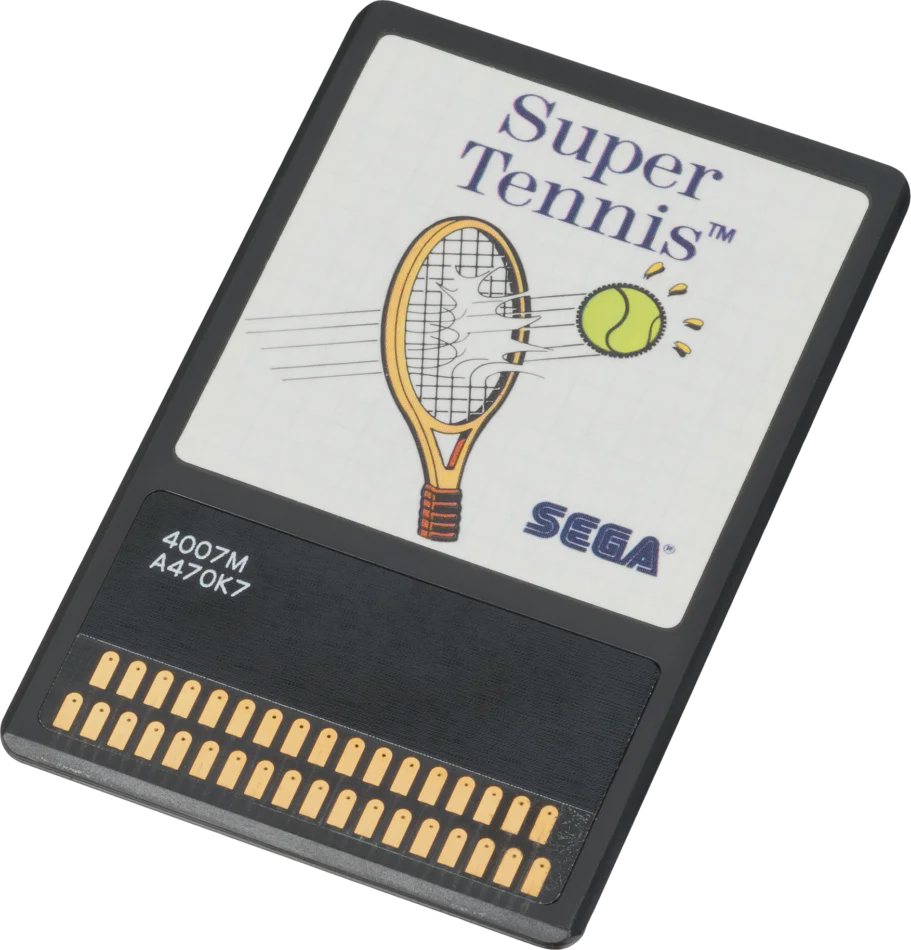

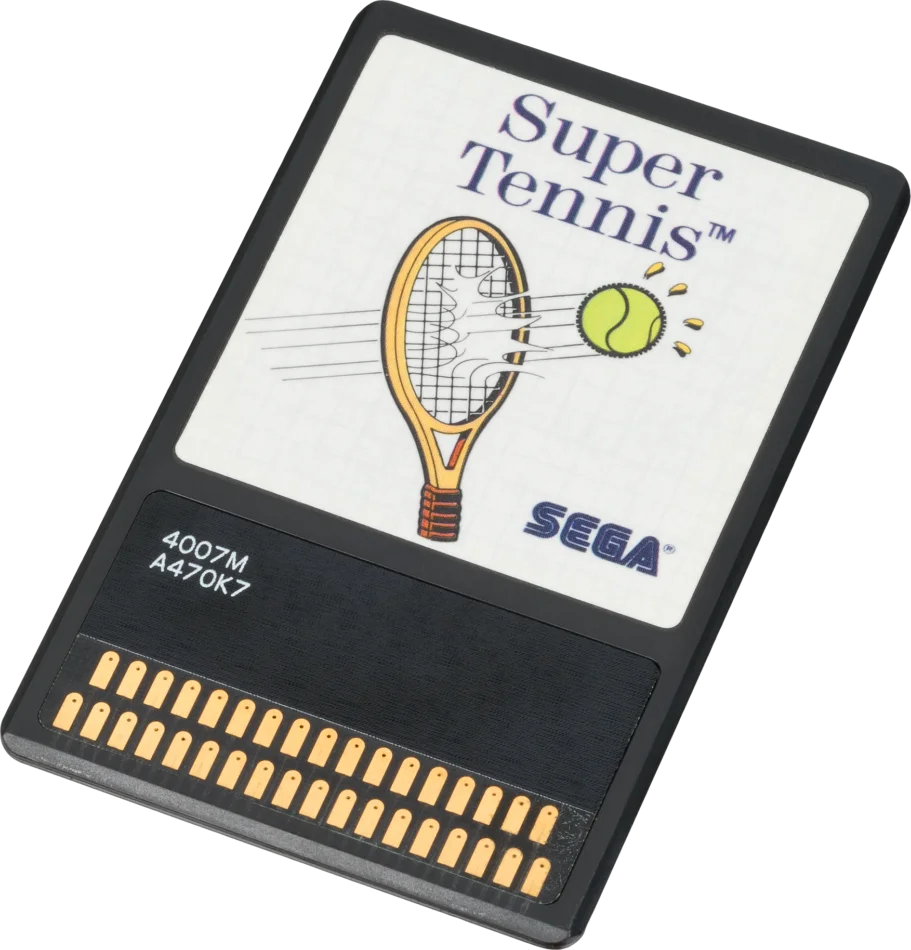

- The Sega Card: Has a very thin case and it’s cheaper to manufacture. Up to 32 KB of memory can be addressed. Since SEGA never designed a mapper for this medium, the largest card found in the market contained a 32 KB ROM.
Anti-Piracy and Region locking
Unlike Nintendo, Sega didn’t employ aggressive methods to control the distribution of their games, they did however prevent American and European systems from running Japanese games by altering the shape of the cartridge slot and using a different ROM header check.
Furthermore, American and European systems had to include the aforementioned TMR SEGA
code on their header. So I supposed this enabled them to prevent unauthorised distribution by making use of trademark laws.
That’s all folks
Having previously written the Nintendo DS article really puts into perspective how complicated tech has become. The Master System is very straightforward in that sense, even after some ‘technical nitpicking’ that I may have said here and there.
Anyway, I hope this article helped you get an overall impression of the state of technology of the early-to-mid-80s. I also want to thank the smspower.org community and the /r/Emulation discord for reading the first draft and pointing out lots of mistakes and suggestions.
Until next time!
Rodrigo
This article has been dedicated to the memory of Jacinto ‘Pocho’ Fornasier.
